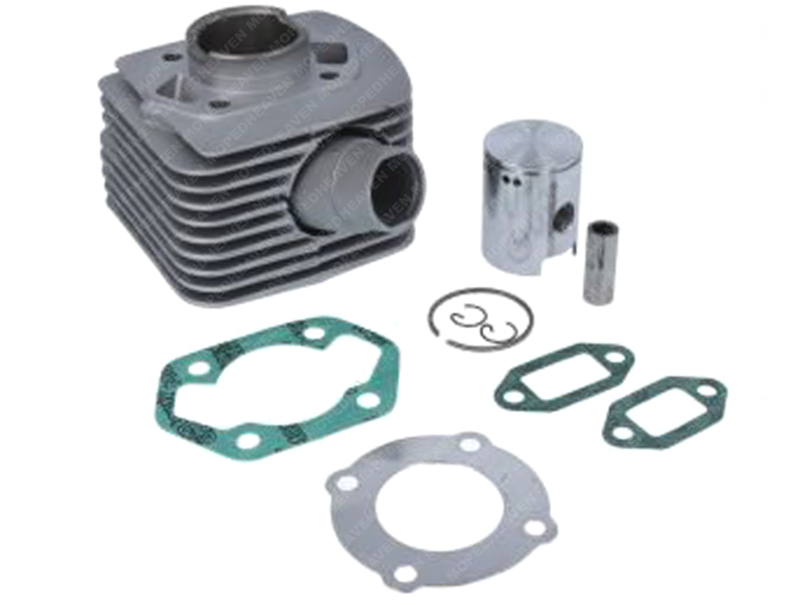

Cylinder set 50cc (39mm) Athena Forced Cooling Zündapp

Cylinder set 50cc (39mm) Athena Forced Cooling Zündapp

• Cylinder.
• 50cc Athena!
• Complete with piston and gasket set!
• Connection Exhaust port 32mm.

Data:

• Cylinder capacity: 50cc.
• Bore: 39mm.
• Piston pin: 12mm.
• Aluminium, Nicasil.
• Athena, Top-Qaulity!

​Note! Extra information:

• This cylinder is supplied with a piston suitable for a 91mm connecting rod.
  From around 1969/1970, Zundapp has completed all engine blocks with a 91mm connecting rod.
  Before this an 85mm connecting rod was used, which can also be recognized by the low-pin pistons.
  If you have a motor block with a low pin piston, this cylinder will not fit.
  It is possible to assemble a new regular crankshaft with a 91mm connecting rod, and it is possible to mount this cylinder again.

Suitable for:

• Zundapp (Forced Cooling)
