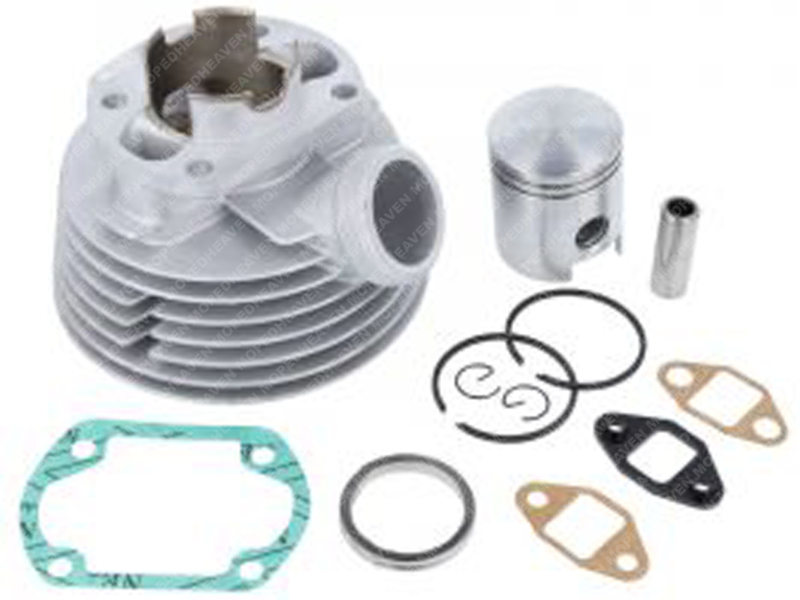

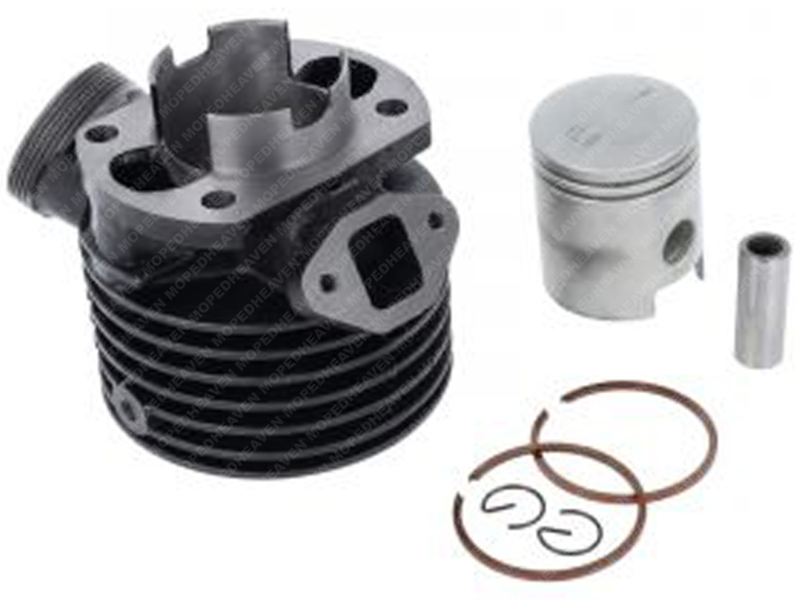

Cylinder set 70cc (45mm) Pin 12 Athena Sachs 504 / 505

∙ Cylinderset.
∙ 70cc Model (45mm)
∙ Complete with piston and gasket set.

Data:

∙ Cylinder volume: 70cc.
∙ Bore: 45mm.
∙ Piston pin: 12mm.
∙ Athena!

Suitable…

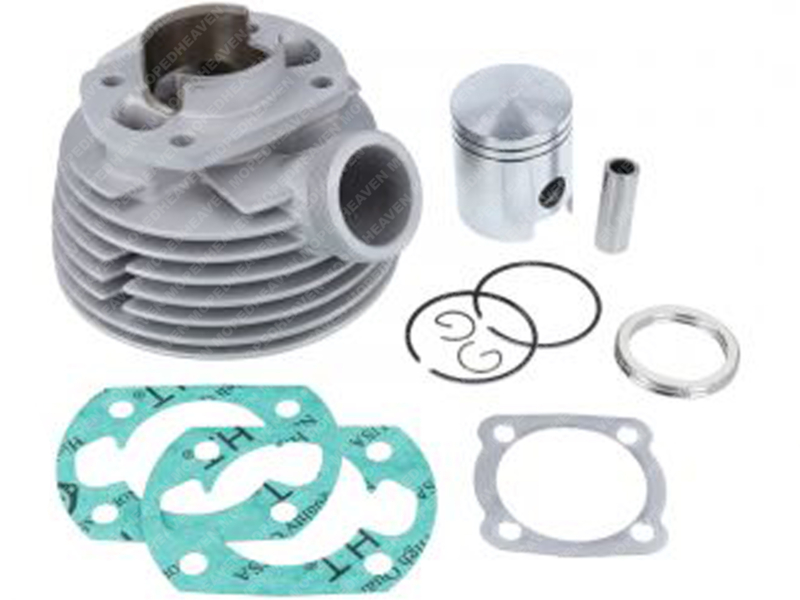

Cylinder set 50cc (38mm) Pin 12 Athena Sachs 504 / 505

∙ Cylinderset.
∙ 50cc Model (38mm)
∙ Complete with piston and gasket set.

Data:

∙ Cylinder volume: 50cc.
∙ Bore: 38mm.
∙ Piston pin: 12mm.
∙ Athena!

Suitable…

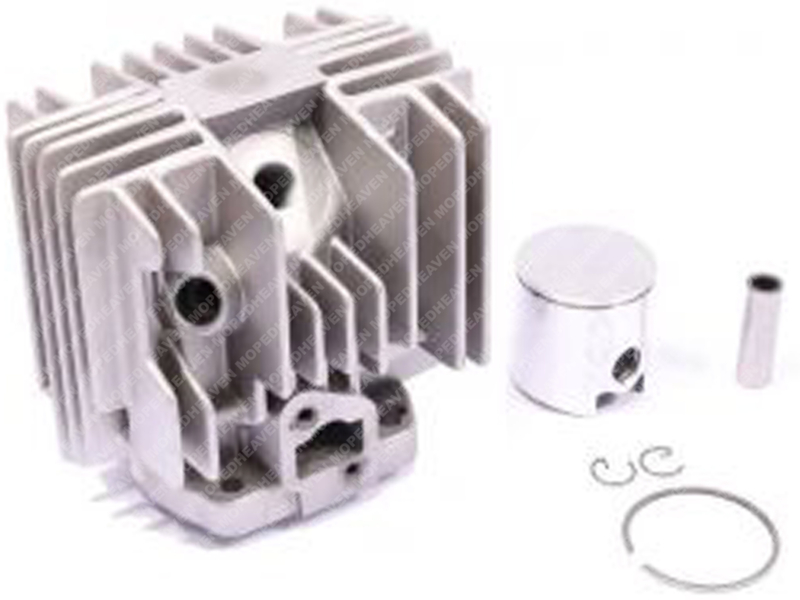

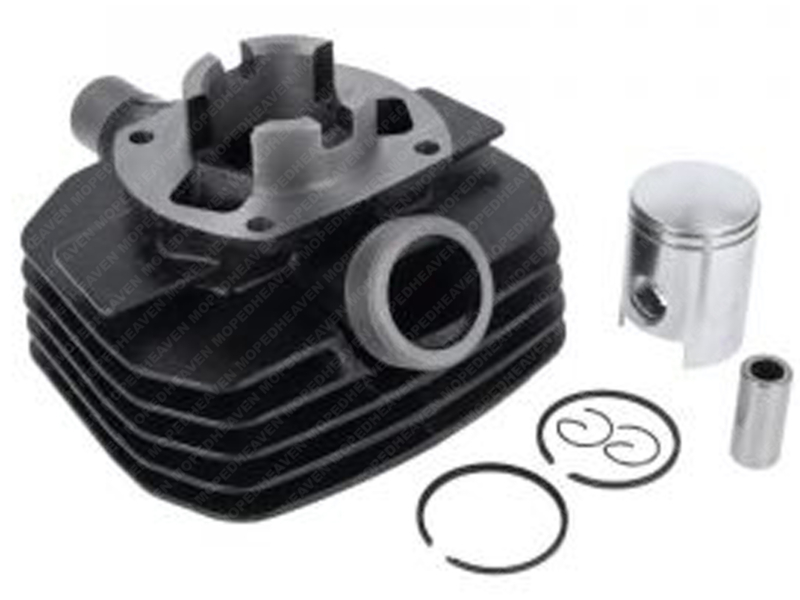

Cylinder set 60cc (41mm) Pin 12 Forced Cooling Sachs 50/3 / 50/4

∙ Cylinderset.
∙ 60cc Model (41mm)
∙ Forced cooling.
∙ Sqaure intake.
∙ Complete with piston.

Measurements:

∙ Total height cylinder: 70mm - 85mm
∙…

Cylinder set 60cc (41mm) Pin 12 Forced Cooling - Small Model Sachs 50/A / 50/2 / 50/3 / 50/4

∙ Cylinderset.
∙ 60cc Model (41mm)
∙ Forced cooling (Small model)
∙ Sqaure intake.
∙ Complete with piston.

Measurements:

∙…

Cylinder set 50cc (38mm) Pin 12 Reed valve inlet Sachs 50/A / 50/2 / 50/3 / 50/4

∙ Cylinderset.
∙ 50cc Model (38mm)
∙ Complete with piston.
∙ Reed valve inlet model.
∙ 2.6HP Possible.

Measurements:

∙ Distance…

Cylinder set 50cc (38mm) Pin 12 DMP 5.8HP Hercules / Sachs 501 / 50 S / 50/4 EKF

∙ Cylinderset.
∙ 50cc Model (38mm)
∙ Complete with piston.
∙ 5.8PHP Possible.
∙ DMP.

Measurements:

∙ Diameter connection inlet:…

Cylinder set 50cc (38mm) Pin 14 DMP 5.8HP Hercules / Sachs 501 / 50 S / 50/3 / 50/4 EKF

∙ Cylinderset.
∙ 50cc Model (38mm)
∙ Complete with piston.
∙ 5.8HP Possible.
∙ DMP

Measurements:

∙ Diameter connection inlet:…

Cylinder set 60cc (41mm) Pin 12 Racing 6.8HP! Sachs 50/2 / 50/3 / 50/4

∙ Cylinderset.
∙ 60cc Model (41mm)
∙ Suitable for air cooling.
∙ Sqaure intake.
∙ Complete with piston and gasket set.
∙ 6.8HP Possible!
∙…

Cylinder set 60cc (41mm) Pin 12 Power One Sachs 50/2 / 50/3 / 50/4

∙ Cylinderset.
∙ 60cc Model (41mm)
∙ Suitable for air cooling.
∙ Sqaure intake.
∙ Complete with piston and gasket set.
∙ Power…

Cylinder set 50cc (38mm) Pin 12 Power One Sachs 50/2 / 50/3 / 50/4

∙ Cylinderset.
∙ 50cc Model (38mm)
∙ Suitable for air cooling.
∙ Sqaure intake.
∙ Complete with piston and gasket set.
∙ Power…

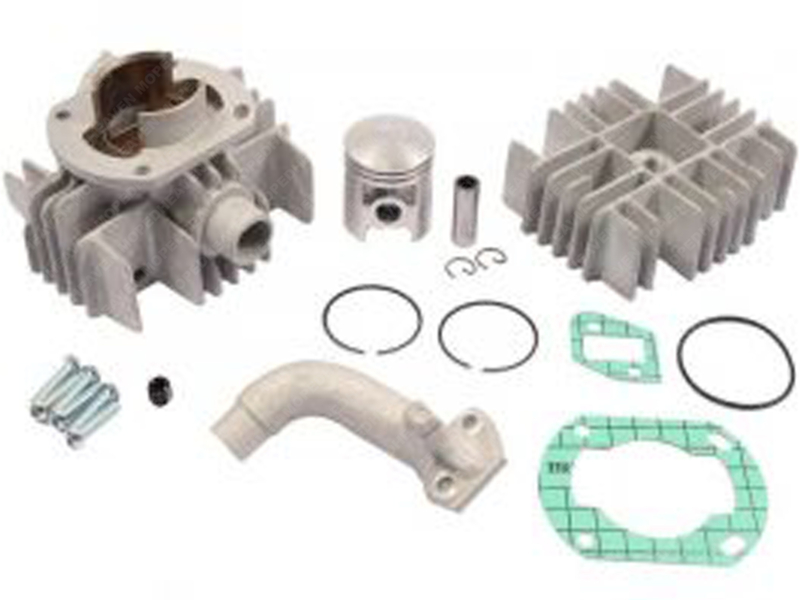

Cylinder set 80cc (48mm) Pin 14 Long stroke 44mm Athena Sachs 5 Gear

∙ Cilinderset.
∙ 80cc Model (48mm)
∙ Long stroke (44mm)
∙ Athena.

Complete set with:

∙ Cylinder.
∙ Piston.
∙ Cylinderhead.
∙ Manifold.
∙…

Cylinder set 70cc (43.5mm) Pin 12 Airsal Sachs 504 / 505 / Hercules Prima

∙ Cylinderset.
∙ 70cc Model (43.5mm)
∙ Airsal.

Complete set with:

∙ Cylinder.
∙ Piston.
∙ Cylinderhead.
∙ Manifold.
∙…

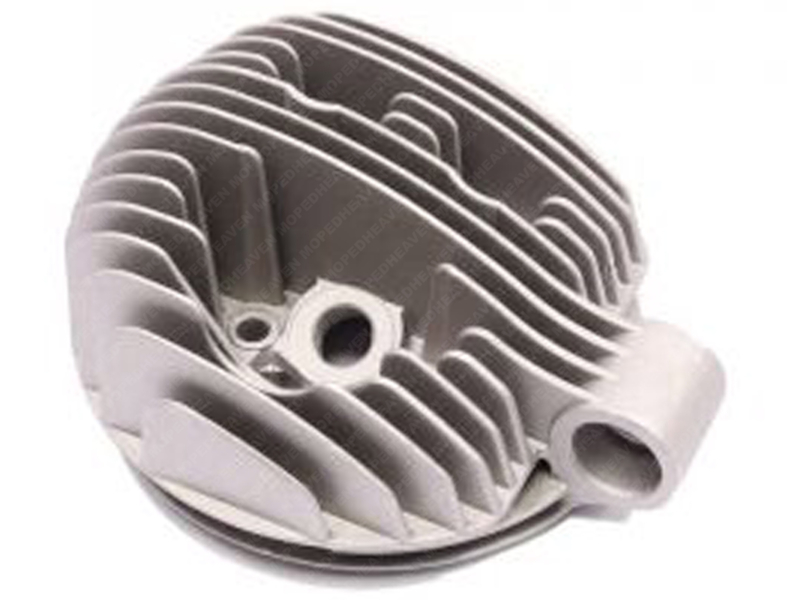

Cylinderhead 70cc (43.5mm) Airsal Sachs 504 / 505 / Hercules Prima

∙ Cilinderhead.
∙ 70cc Model (43.5mm)
∙ Suitable for the 70cc Airsal cylinder set.

Suitable for:

∙ Sachs 504.
∙ Sachs 505.
∙ Hercules Prima.

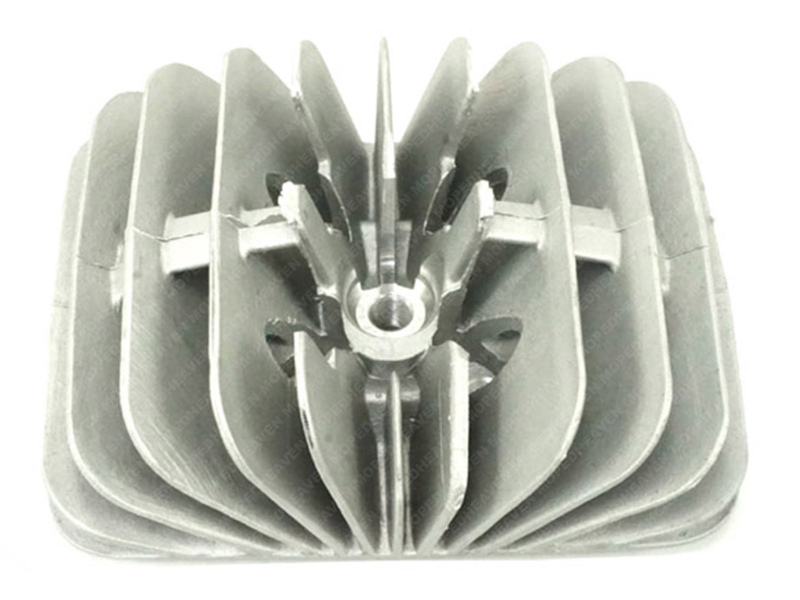

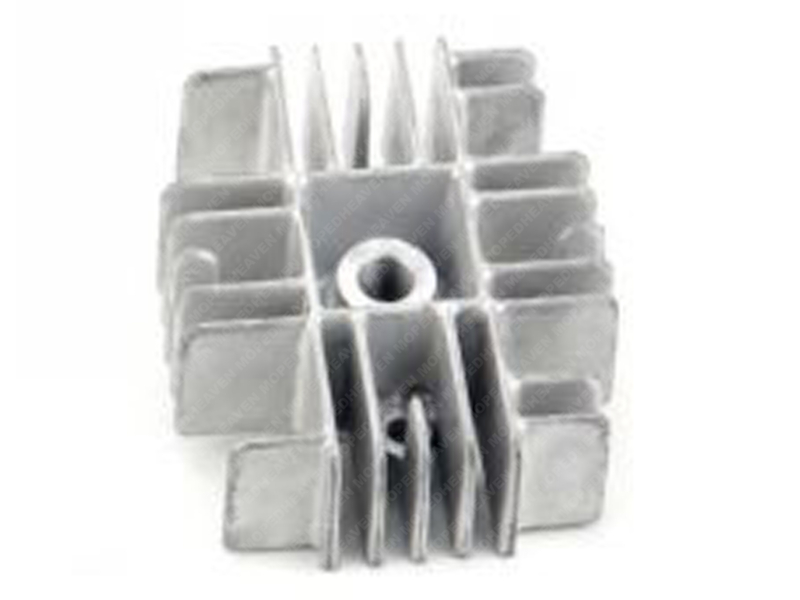

Cylinderhead 60cc (41mm) High Compression Air / Forced Cooling Sachs 50/2 / 50/3 / 50/4

∙ Cylinderhead.
∙ High Compression.
∙ 60cc Model (41mm)
∙ Air and Forced cooling.
∙ For long shaft spark plugs.

Measurements:

∙…

Cylinderhead 50cc (38mm) Air-cooled Sachs 50/2 / 50/3 / 50/4

∙ Cylinderhead.
∙ 50cc Model (38mm)
∙ Air-cooled model.

Suitable for:

∙ Sachs 50/2 KS.
∙ Sachs 50/3 KFS.
∙ Sachs 50/4 LF.

Sachs Reference number

213 127 000

Cylinderhead 50cc (38mm) Air-cooled Sachs 50/3 LS

∙ Cylinderhead.
∙ 50cc Model (38mm)
∙ Air-cooled model.

Measurements:

∙ Outer diameter: 94mm - 85mm.

Suitable for:

∙ Sachs 50/3 LS.

Cylinderhead 80cc (48mm) AC Air-cooled Parmakit Sachs 50/5 S / 50/6 GS

∙ Cylinderhead.
∙ 80cc Model (48mm)
∙ AC, Air cooled model.
∙ Parmakit.

Suitable for:​

∙ Sachs 50/5 S.
∙ Sachs 50/6 GS.

Sachs Reference number

64154.04

Cylinderhead 80cc (48mm) AC Air-cooled Parmakit Sachs RS Radiale

∙ Cylinderhead.
∙ 80cc Model (48mm)
∙ AC, Air cooled model.
∙ Parmakit.

Suitable for:​

∙ Sachs RS Radiale.

Sachs Reference number

64154.04

Cylinderhead 50cc (38mm) AC Air-cooled Parmakit Sachs RS Radiale

∙ Cylinderhead.
∙ 50cc Model (38mm)
∙ AC, Air cooled model.
∙ Parmakit.

Suitable for:​

∙ Sachs RS Radiale.

Cylinderhead 70cc (45mm) AC Air-cooled Parmakit Sachs RS Radiale

∙ Cylinderhead.
∙ 70cc Model (45mm)
∙ AC, Air cooled model.
∙ Parmakit.

Suitable for:​

∙ Sachs RS Radiale.

Sachs Reference number

64262.04

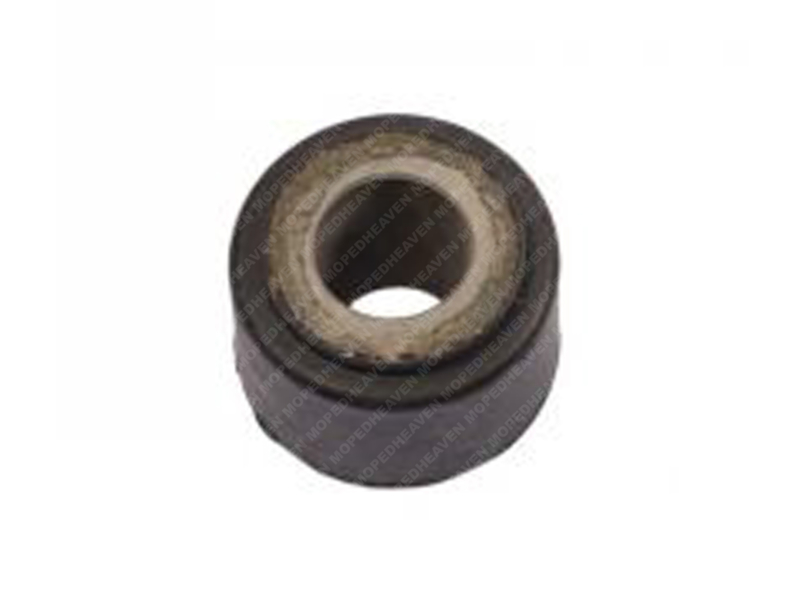

Silent-bloc Rubber Cylinderhead Sachs

∙ Silentblocrubber cylinderhead.
∙ A Piece.

Measurements:

∙ 8.5mm x 15mm x 19mm.

Suitable for:

∙ Sachs Modellen.

Sachs Reference number

0260 021 008

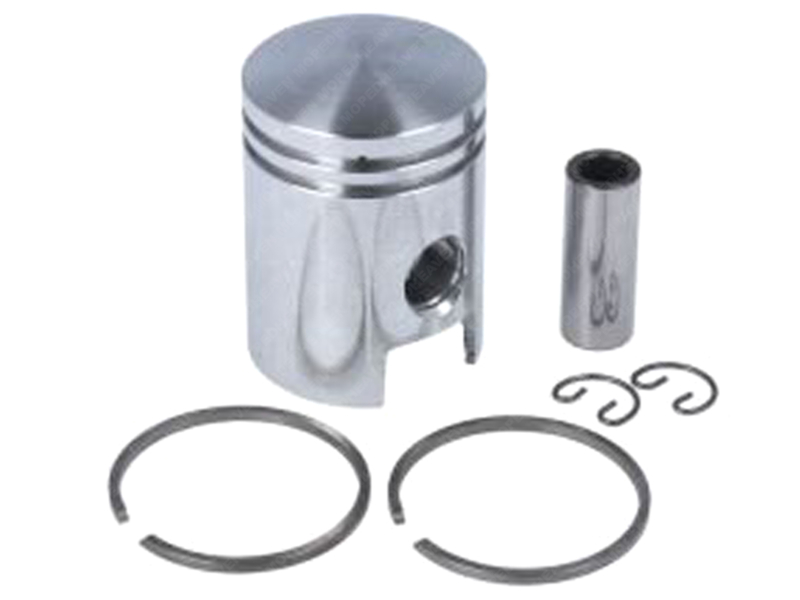

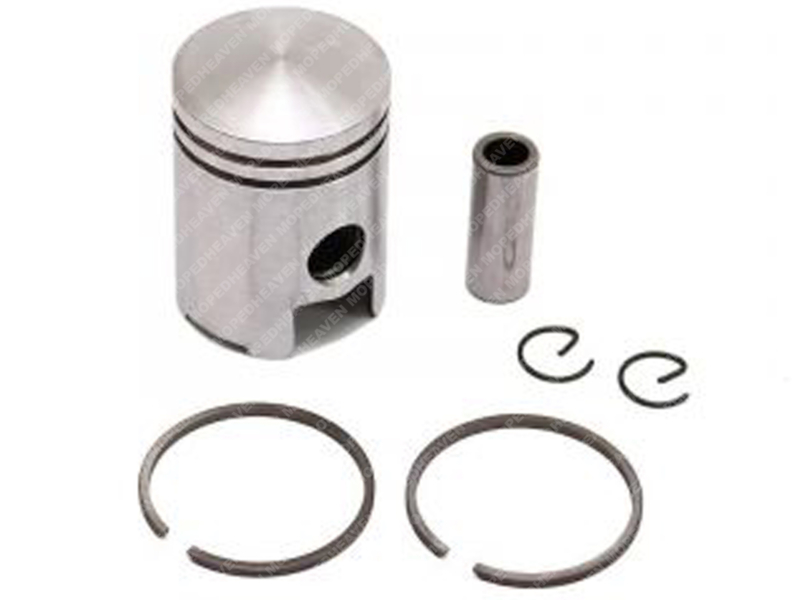

Piston 50cc (38mm) Pin 12 Standard Sachs 50/2 / 50/3

∙ Piston set.
∙ Standard model.
∙ 50cc Model (38mm)

Data:

∙ Cylinder capacity: 50cc.
∙ Tolerance size: -
∙ Bore: 38mm.
∙ Piston rings: 2 Pieces.
∙ Piston pin:…

Piston 50cc (38.60mm) Pin 12 Meteor Sachs 50/2 / 50/3

∙ Piston set.
∙ 50cc Model (38.60mm)

Data:

∙ Cylinder capacity: 50cc.
∙ Tolerance size: -
∙ Bore: 38.60mm.
∙ Piston rings: 2 Pieces.
∙ Piston pin: 12mm.
∙…

Piston 50cc (39mm) Pin 12 Sachs 50/2 / 50/3

∙ Piston set.
∙ 50cc Model (39mm)

Data:

∙ Cylinder capacity: 50cc.
∙ Tolerance size: -
∙ Bore: 39mm.
∙ Piston rings: 2 Pieces.
∙ Piston pin: 12mm.
∙ Height total:…

Piston 50cc (38.5mm) Pin 12 Sachs 50/2 / 50/3

∙ Piston set.
∙ 50cc Model (38.5mm)

Data:

∙ Cylinder capacity: 50cc.
∙ Tolerance size: -
∙ Bore: 38.5mm.
∙ Piston rings: 2 Pieces.
∙ Piston pin: 12mm.
∙ Height…

Piston 60cc (41mm) Pin 12 Sachs

∙ Piston.
∙ 60cc Model (41mm)

Data:

∙ Cylinder capacity: 60cc.
∙ Tolerance size: -
∙ Bore: 41mm.
∙ Piston rings: 2 Pieces.
∙ Piston pin: 12mm.
∙ Height total: 46mm /…

Piston 60cc (39.96mm) Pin 12 Sachs

∙ Piston.
∙ 60cc Model (40mm)

Data:

∙ Cylinder capacity: 60cc.
∙ Tolerance size: -
∙ Bore: 39.96mm.
∙ Piston rings: 2 Pieces.
∙ Piston pin: 12mm.
∙ Height total:…

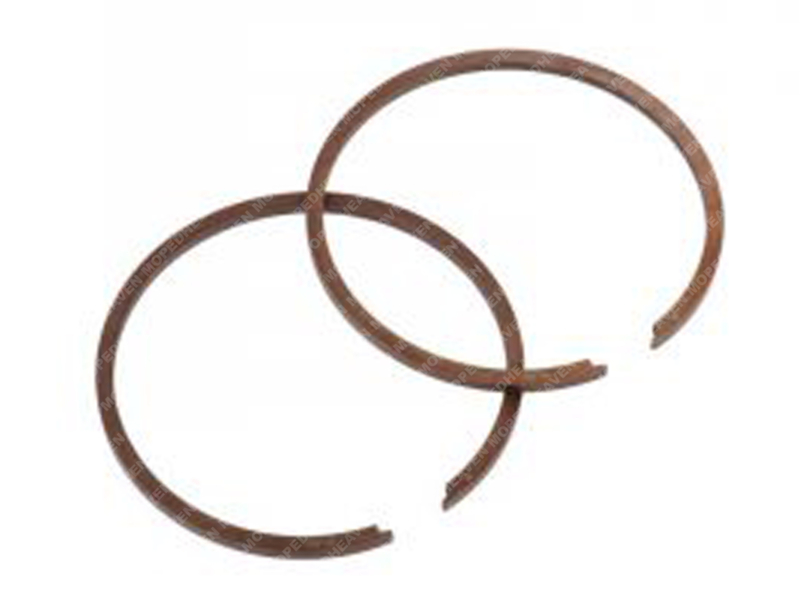

Piston Ring set (41mm x 1.5mm) 2-Pieces Sachs

∙ Piston rings.
∙ 41mm x 1.5mm.
∙ 2 Pieces.

Suitable for:

∙ Sachs Models.

Piston (A) 50cc (37.95mm) Pin 14 Meteor Hercules / Sachs

∙ Piston.
∙ 50cc Model (37.96mm)
∙ Meteor, Top-Qaulity!

Data:

∙ Cylinder capacity: 50cc.
∙ Tolerance size: A.
∙ Bore: 37.95mm.
∙ Piston rings: 2 Pieces (1x…

Piston (B) 50cc (37.96mm) Pin 14 Meteor Hercules / Sachs

∙ Piston.
∙ 50cc Model (37.96mm)
∙ Meteor, Top-Qaulity!

Data:

∙ Cylinder capacity: 50cc.
∙ Tolerance size: B.
∙ Bore: 37.96mm.
∙ Piston rings: 2 Pieces (1x…

Piston (C) 50cc (37.97mm) Pin 14 Meteor Hercules / Sachs

∙ Piston.
∙ 50cc Model (37.97mm)
∙ Meteor, Top-Qaulity!

Data:

∙ Cylinder capacity: 50cc.
∙ Tolerance size: C.
∙ Bore: 37.97mm.
∙ Piston rings: 2 Pieces (1x…

Piston (F) 50cc (38.00mm) Pin 14 Meteor Hercules / Sachs

∙ Piston.
∙ 50cc Model (38.00mm)
∙ Meteor, Top-Qaulity!

Data:

∙ Cylinder capacity: 50cc.
∙ Tolerance size: F.
∙ Bore: 38mm.
∙ Piston rings: 2 Pieces (1x 2mm…

Piston (G) 50cc (38.01mm) Pin 14 Meteor Hercules / Sachs

∙ Piston.
∙ 50cc Model (38.01mm)
∙ Meteor, Top-Qaulity!

Data:

∙ Cylinder capacity: 50cc.
∙ Tolerance size: G.
∙ Bore: 38.01mm.
∙ Piston rings: 2 Pieces (1x…

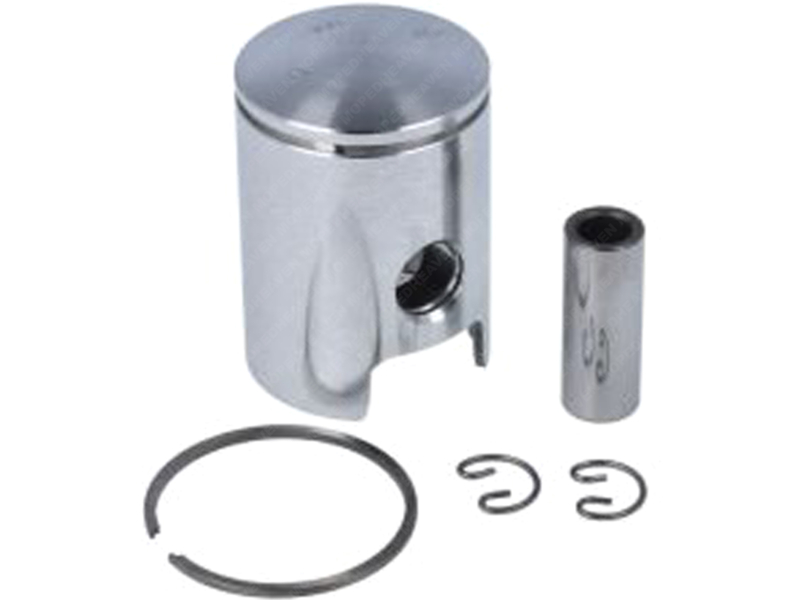

Piston (A) 50cc (37.96mm) Pin 12 Meteor Sachs

∙ Zuiger.
∙ 50cc Model (37.96mm)
∙ Meteor, Top-Qaulity!

Data:

∙ Cylinder capacity: 50cc.
∙ Tolerance size: A.
∙ Bore: 37.96mm.
∙ Piston rings: 1 Ring.
∙ Piston pin:…

Piston (A) 50cc (37.97mm) Pin 12 Meteor Sachs 504

∙ Piston.
∙ 50cc Model (37.97mm)
∙ Meteor, Top-Qaulity!

Data:

∙ Cylinder capacity: 50cc.
∙ Tolerance size: A.
∙ Bore: 37.97mm.
∙ Piston rings: 2 x 2mm Ring.
∙…

Piston (B) 50cc (37.98mm) Pin 12 Meteor Sachs 504

∙ Piston.
∙ 50cc Model (37.98mm)
∙ Meteor, Top-Qaulity!

Data:

∙ Cylinder capacity: 50cc.
∙ Tolerance size: B.
∙ Bore: 37.98mm.
∙ Piston rings: 2 x 2mm Ring.
∙…

Piston (C) 50cc (37.99mm) Pin 12 Meteor Sachs 504

∙ Piston.
∙ 50cc Model (37.99mm)
∙ Meteor, Top-Qaulity!

Data:

∙ Cylinder capacity: 50cc.
∙ Tolerance size: C.
∙ Bore: 37.99mm.
∙ Piston rings: 2 x 2mm Ring.
∙…

Piston (D) 50cc (38.0mm) Pin 12 Meteor Sachs 504

∙ Piston.
∙ 50cc Model (38.00mm)
∙ Meteor, Top-Qaulity!

Data:

∙ Cylinder capacity: 50cc.
∙ Tolerance size: D.
∙ Bore: 38mm.
∙ Piston rings: 2 x 2mm Ring.
∙ Piston…
